DS4-D

EP DS4-D – Flexible Stacking for the Real World

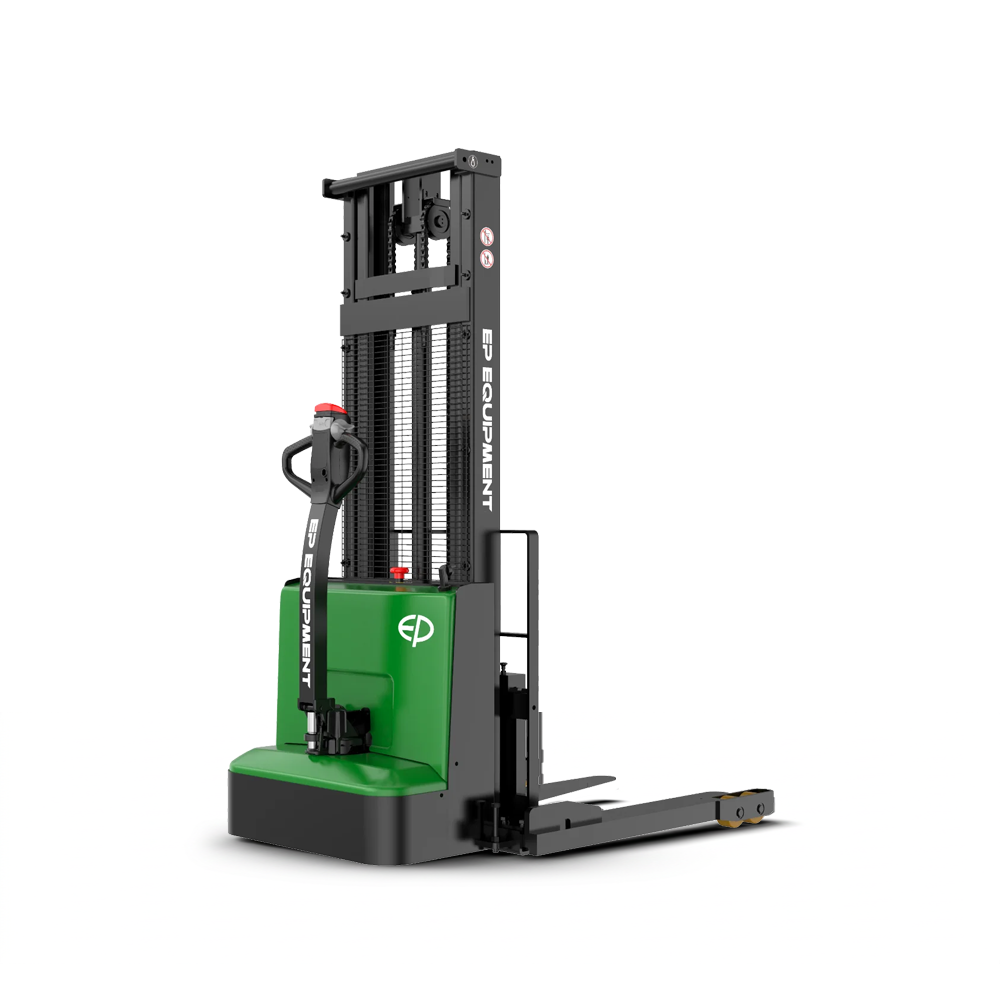

The EP Equipment DS4-D is a versatile 1.2-tonne electric pedestrian stacker designed for warehouses where pallet sizes, loads and daily handling requirements don't always stay the same.

Its standout feature is its adjustable straddle-leg and fork design, allowing the DS4-D to adapt to a wide range of pallet formats. With four different straddle-width settings and adjustable forks, it is an excellent option for businesses handling mixed pallet types across warehousing, manufacturing, retail and distribution applications.

The DS4-D offers a 1,200 kg rated capacity, retaining its full capacity at lift heights of up to 3.3 metres. At its maximum lift height of approximately 3.9 metres, it can still handle around 700 kg, providing useful capability for higher-level racking and stock replenishment.

A centrally positioned drive system gives the DS4-D excellent balance and stable handling, particularly when moving loads regularly throughout the warehouse. Its compact dimensions and 1,450 mm turning radius also make it highly manoeuvrable in tighter aisles and confined storage areas.

Power comes from a maintenance-free 24V 60Ah Li-ion battery, complete with an integrated onboard charger for simple everyday charging. Larger battery options are also available for operations requiring additional running time.

Durability and operator safety have been built into the design, with a reinforced metal cover, protective mast mesh, emergency disconnect, hydraulic anti-burst protection and a half-speed function for additional control when manoeuvring in restricted areas.

For businesses looking for a straightforward electric stacker that can adapt to different pallets while still providing serious lifting capability, the DS4-D offers an excellent combination of flexibility, stability and value.

Different pallets. Different jobs. One versatile stacker.

DOWNLOAD DATA SHEET HERE
