JX2-3

3.6m Man Up Order Picker with Forks 0.7 Ton

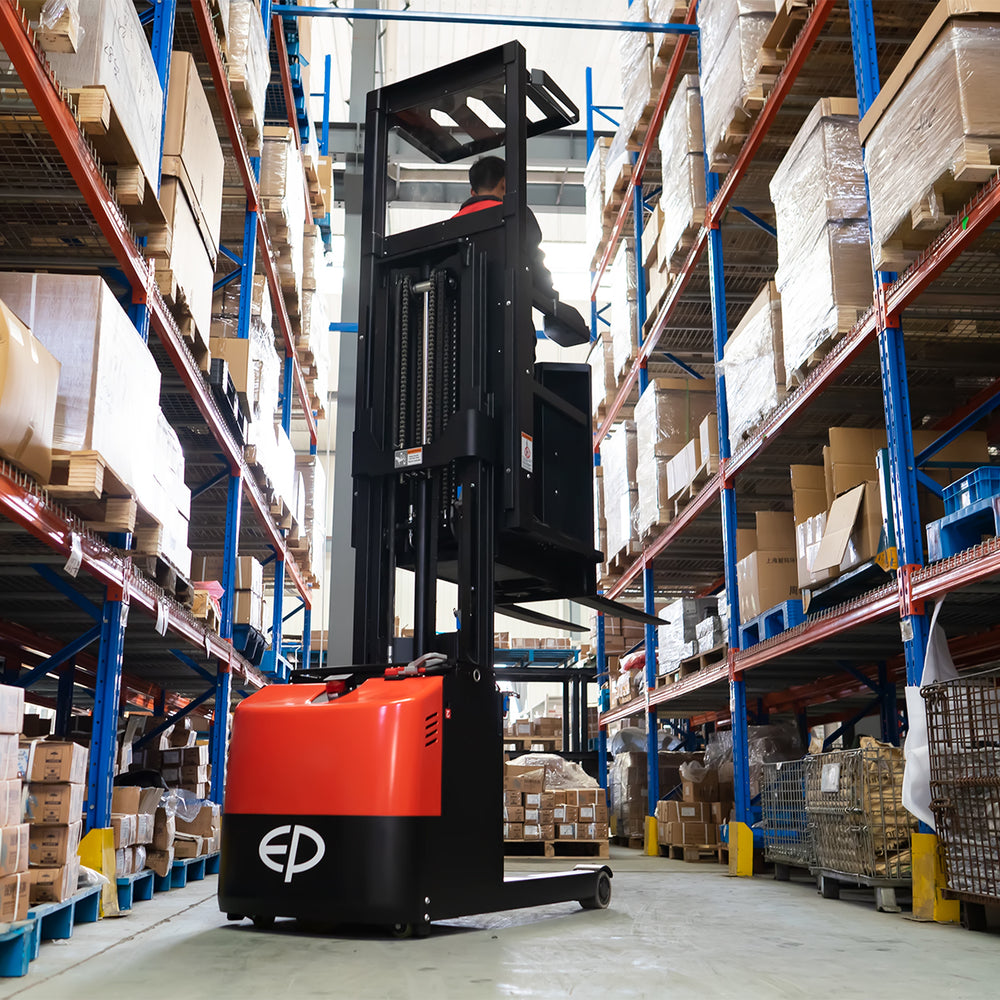

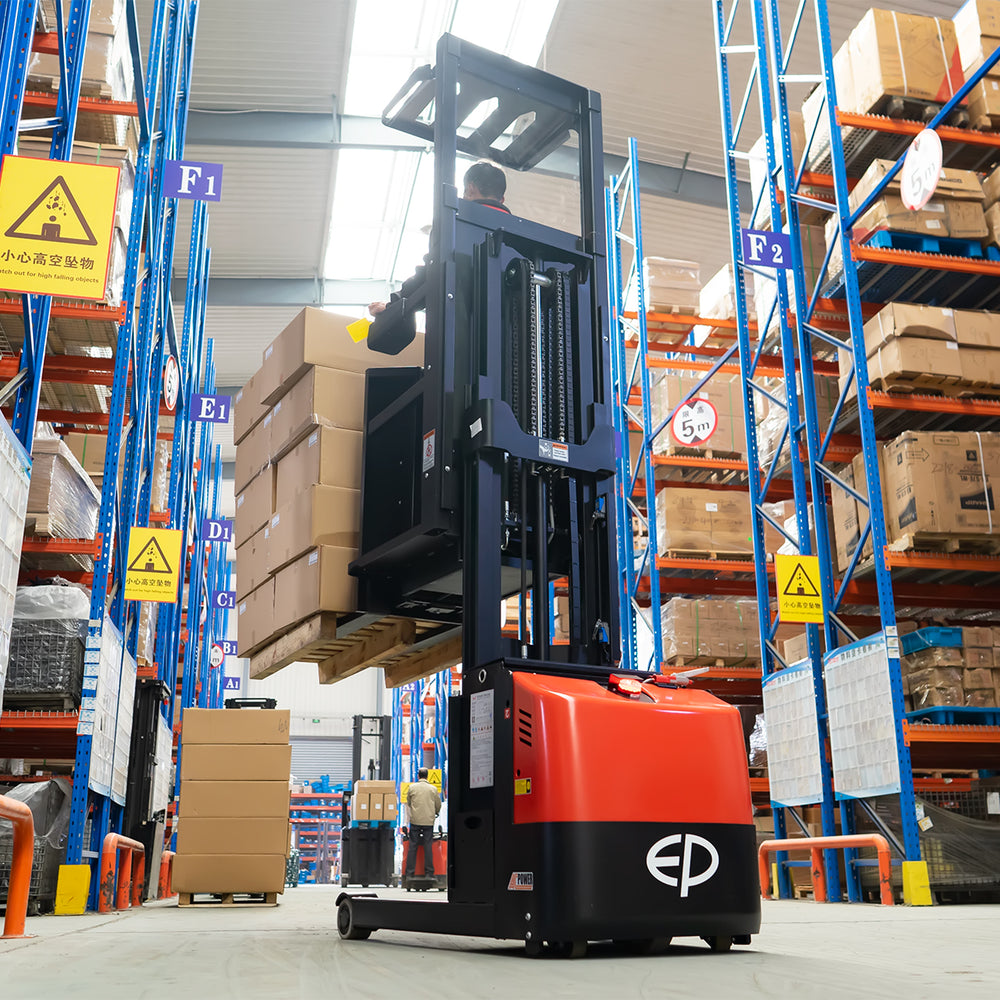

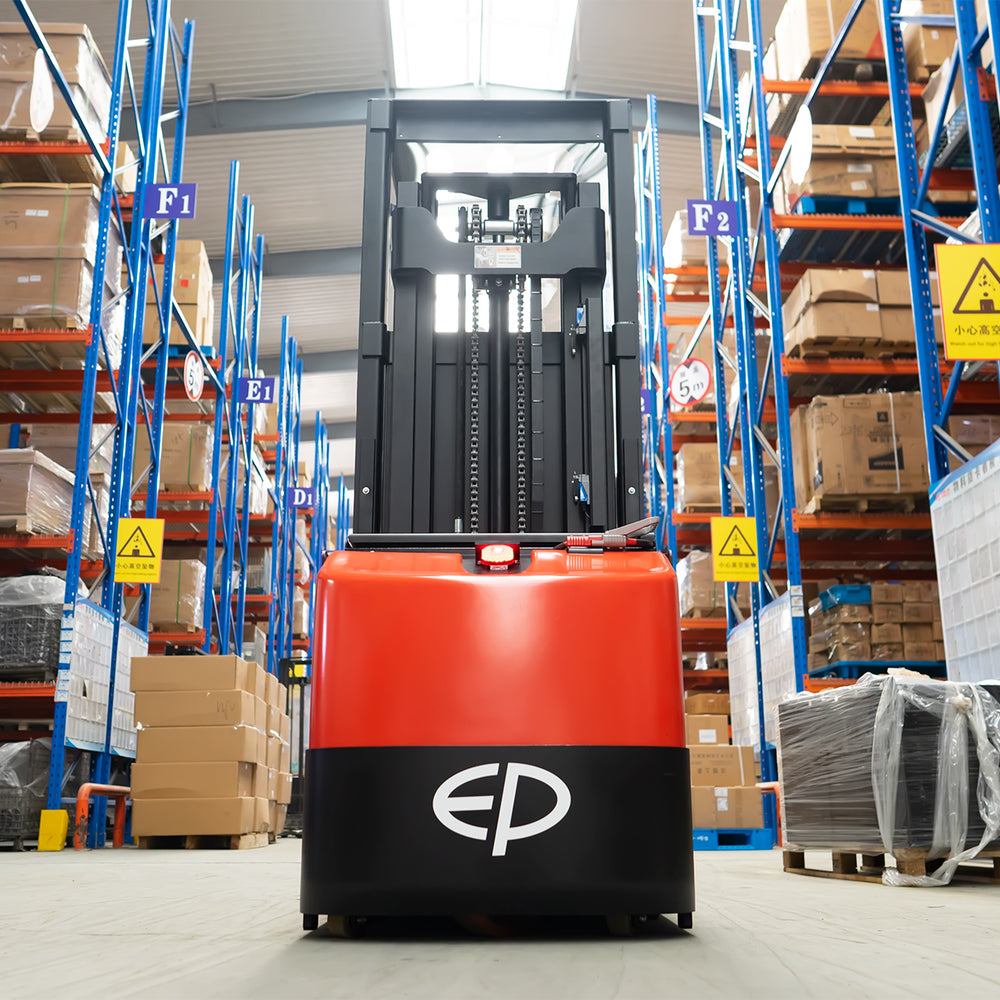

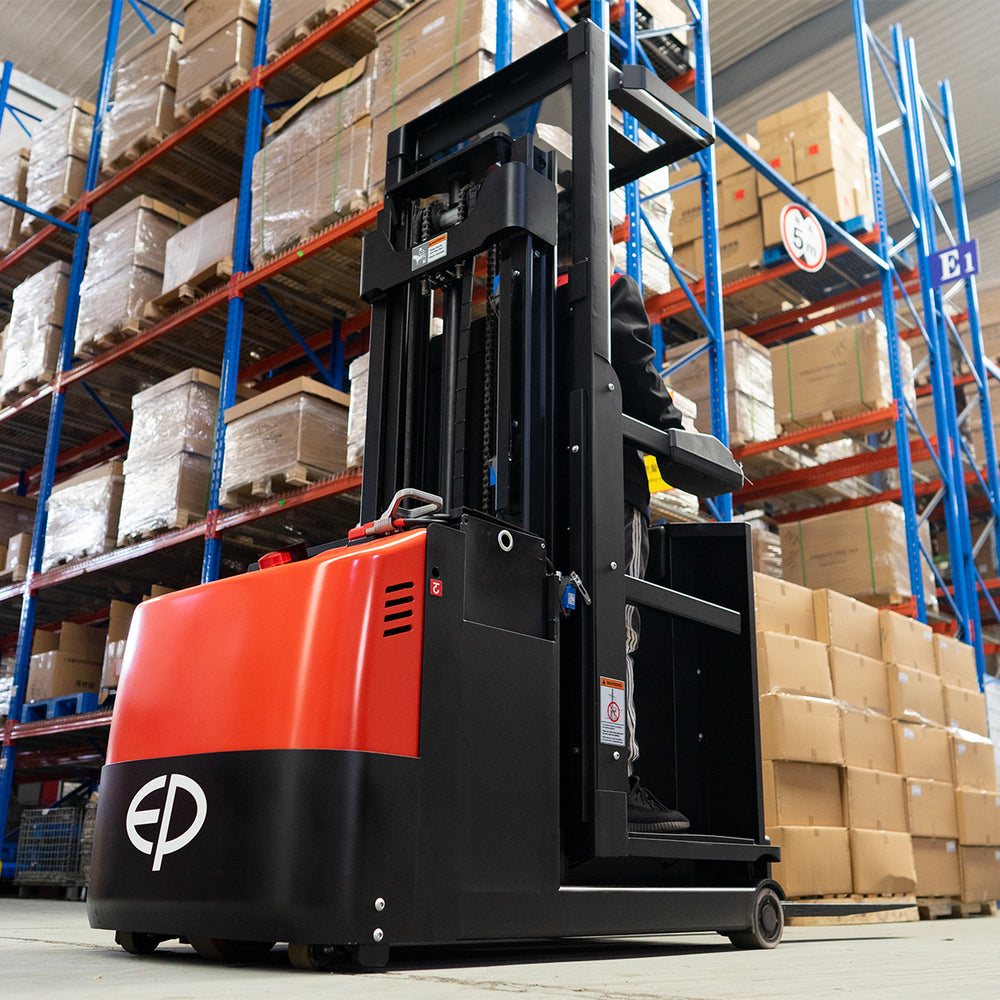

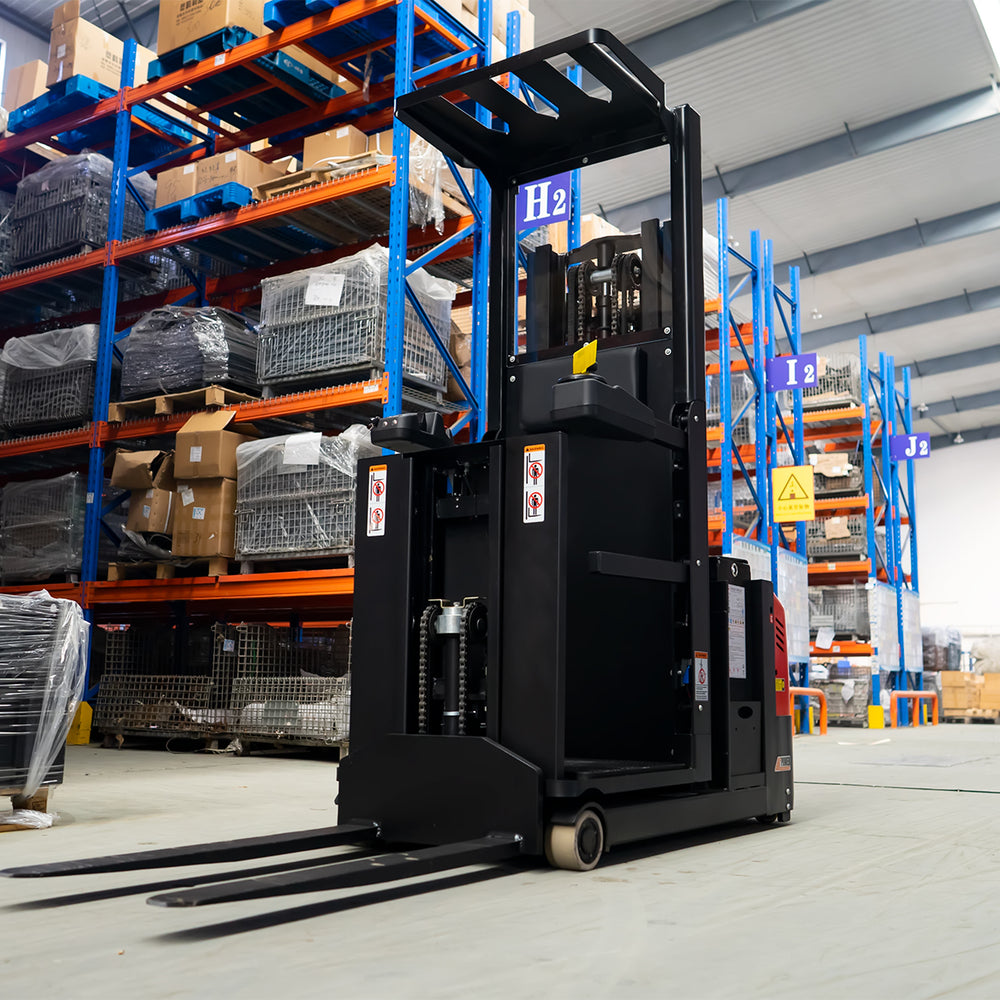

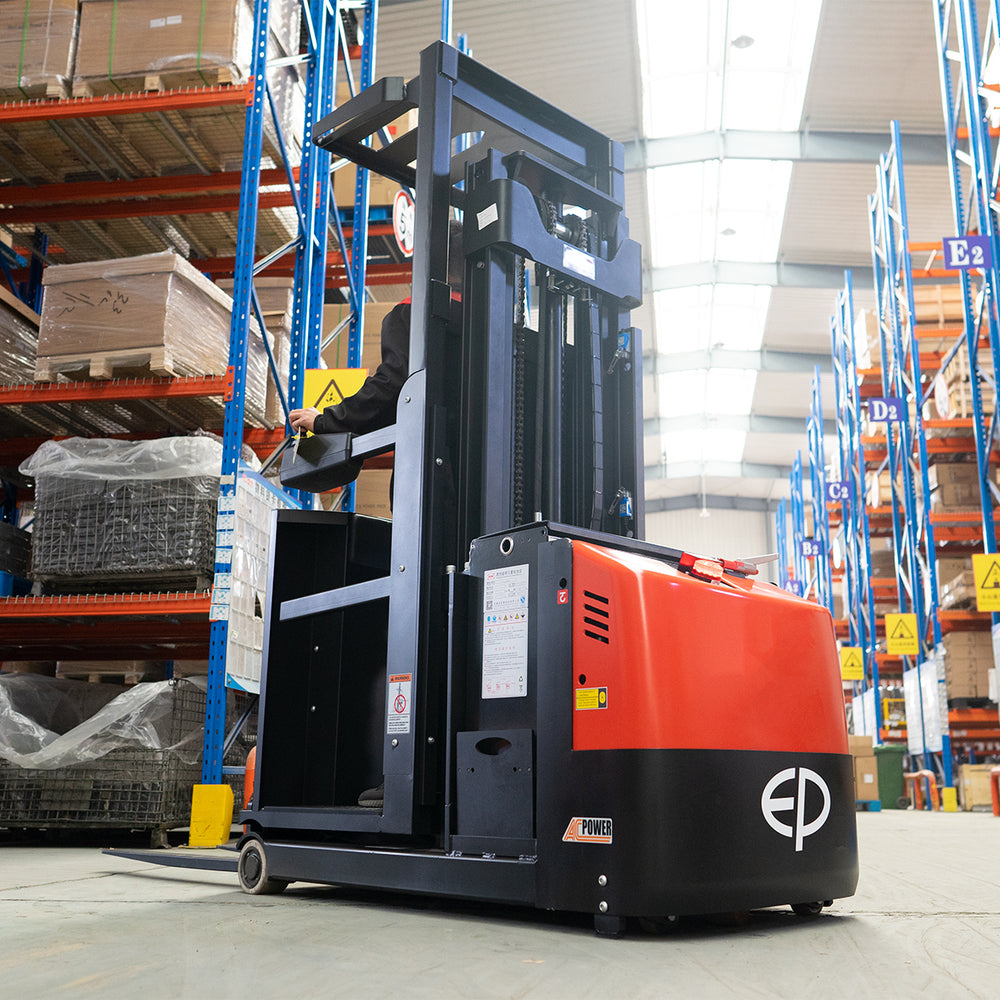

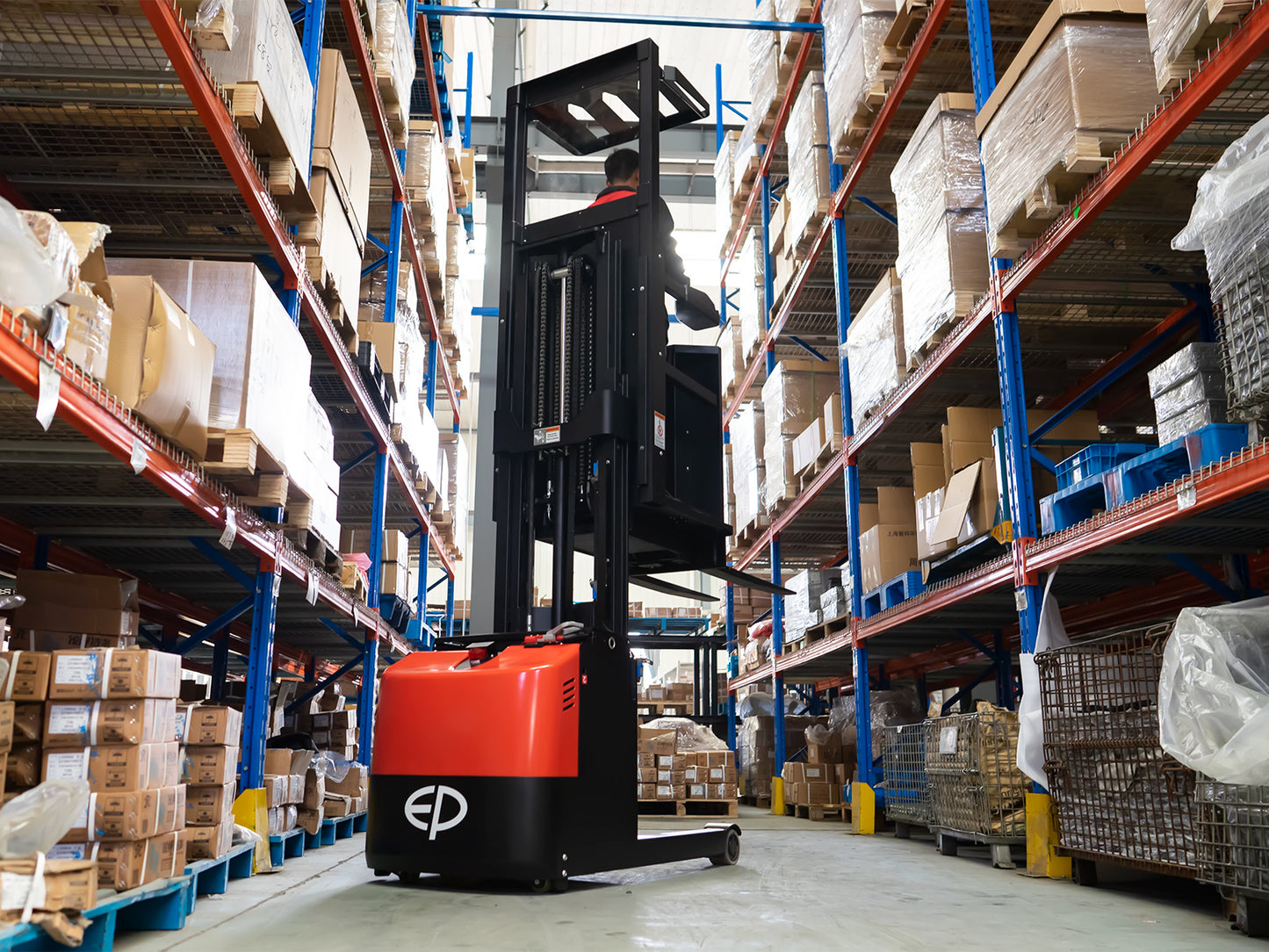

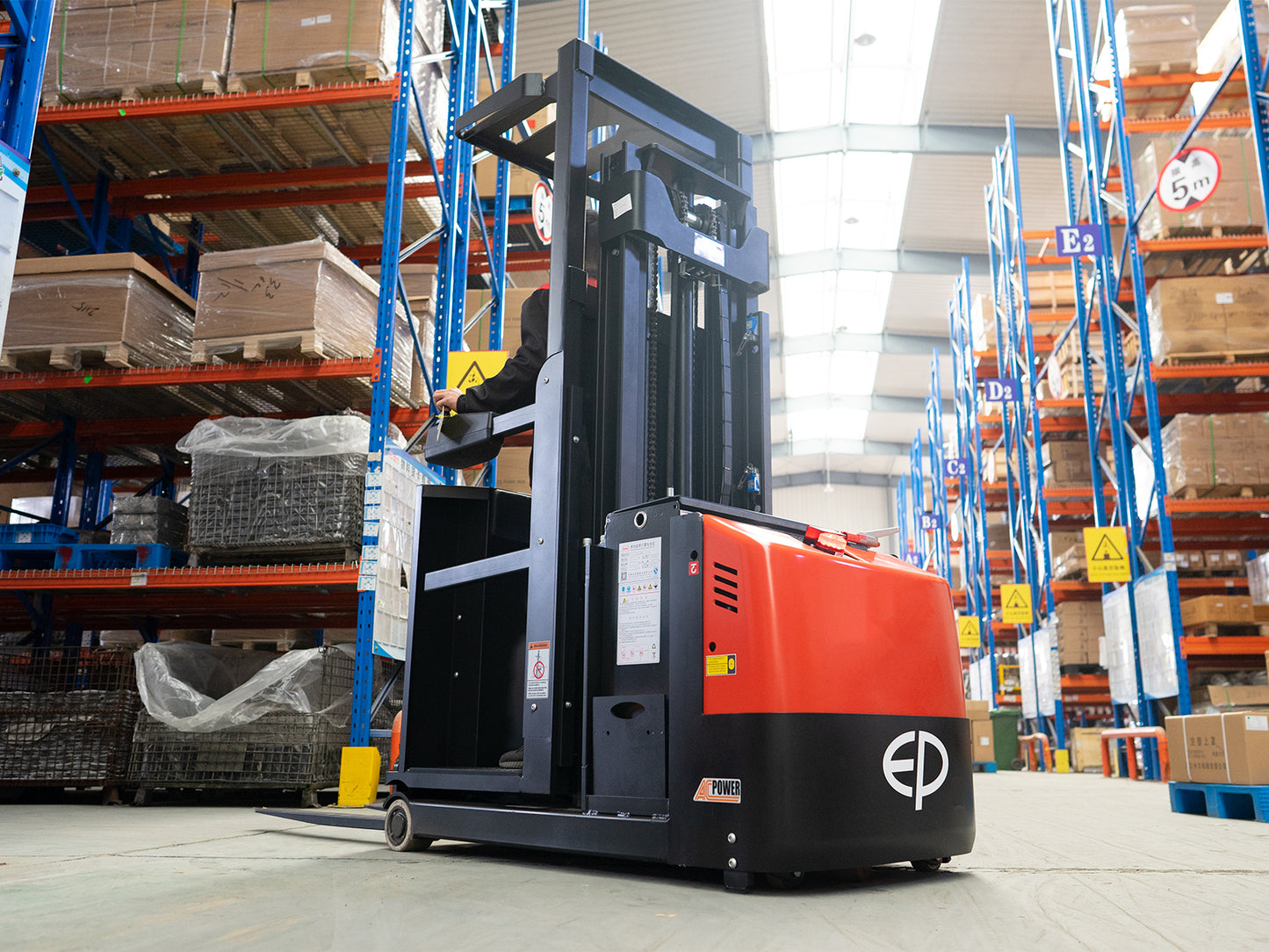

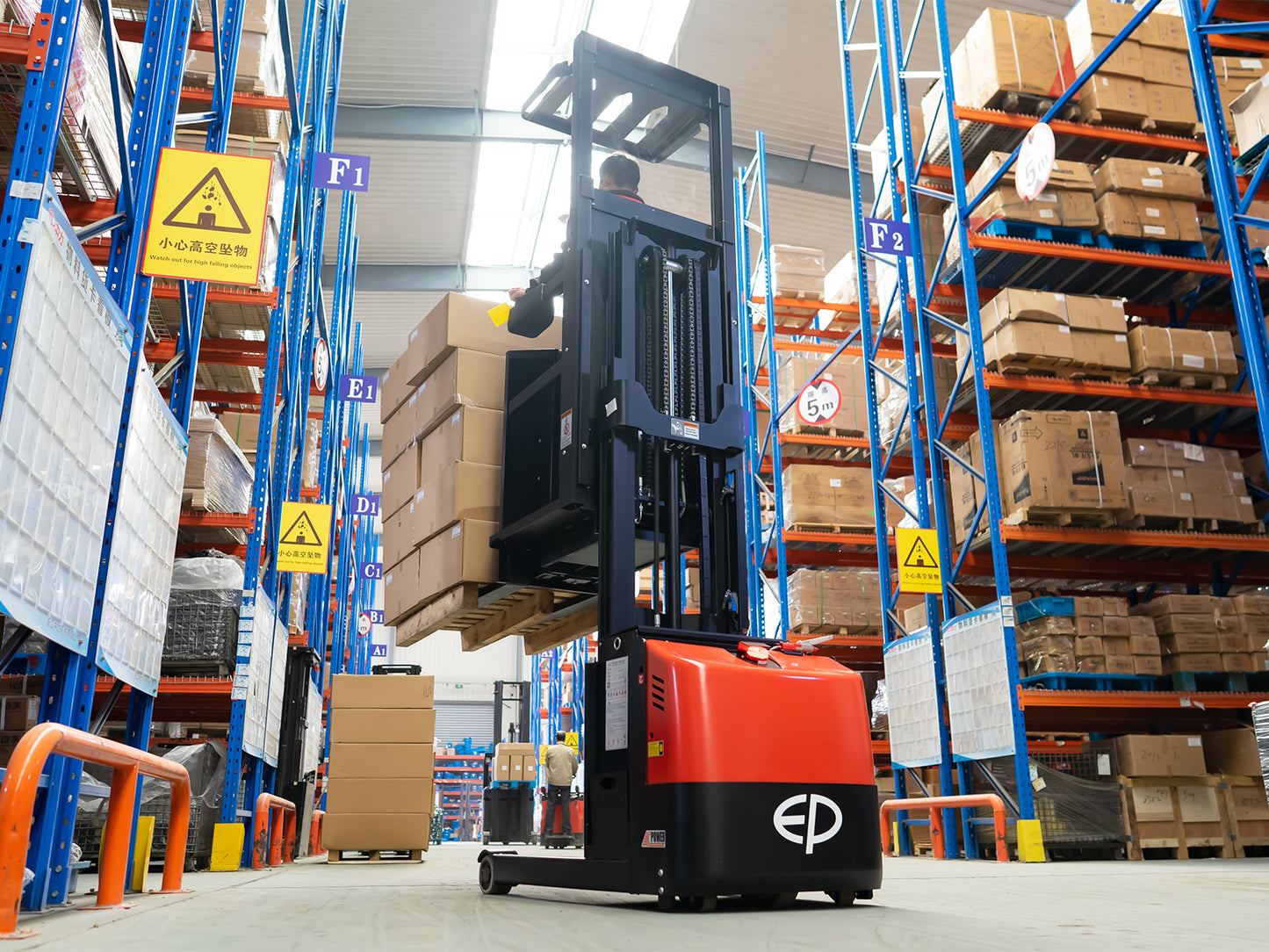

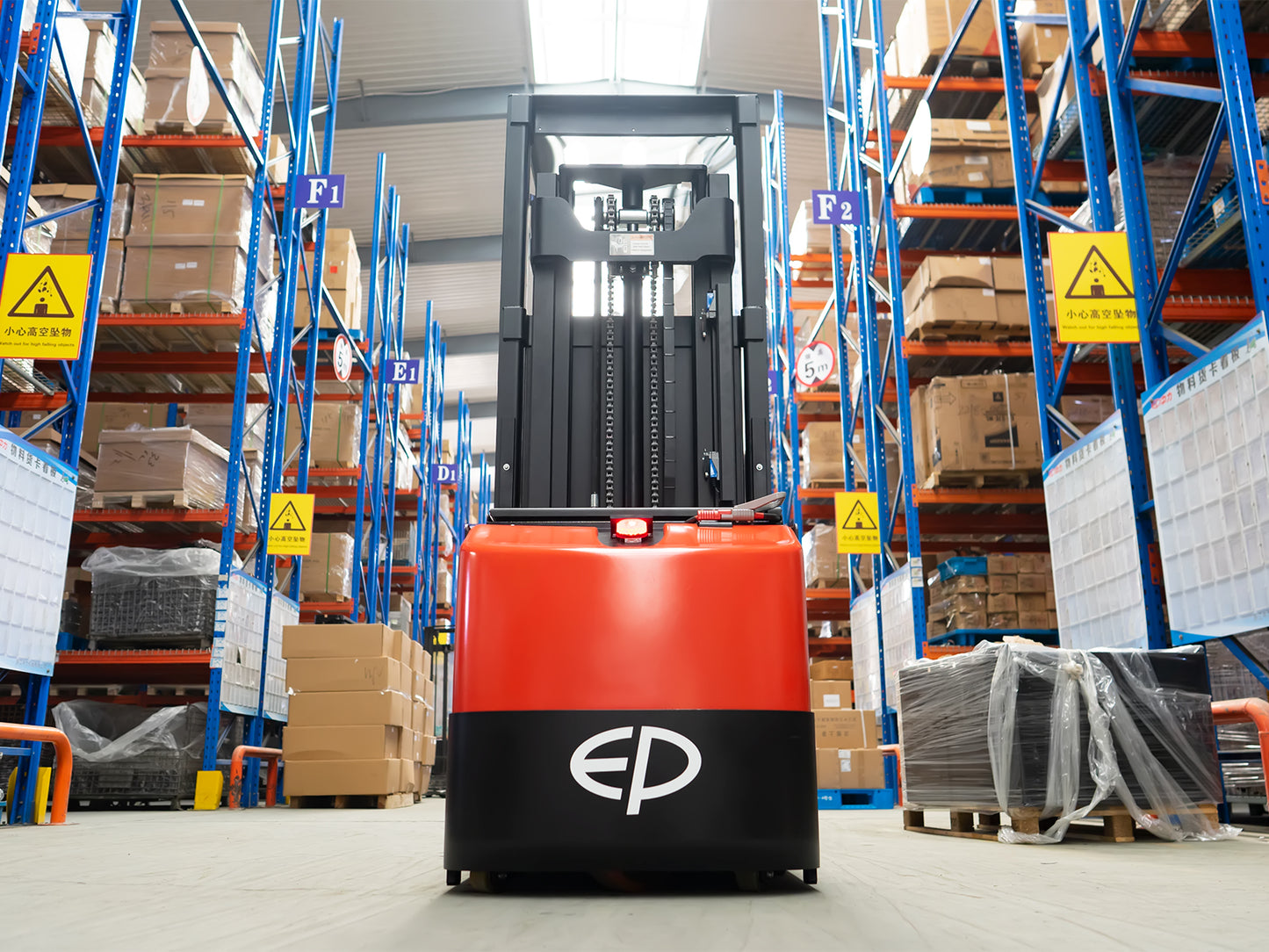

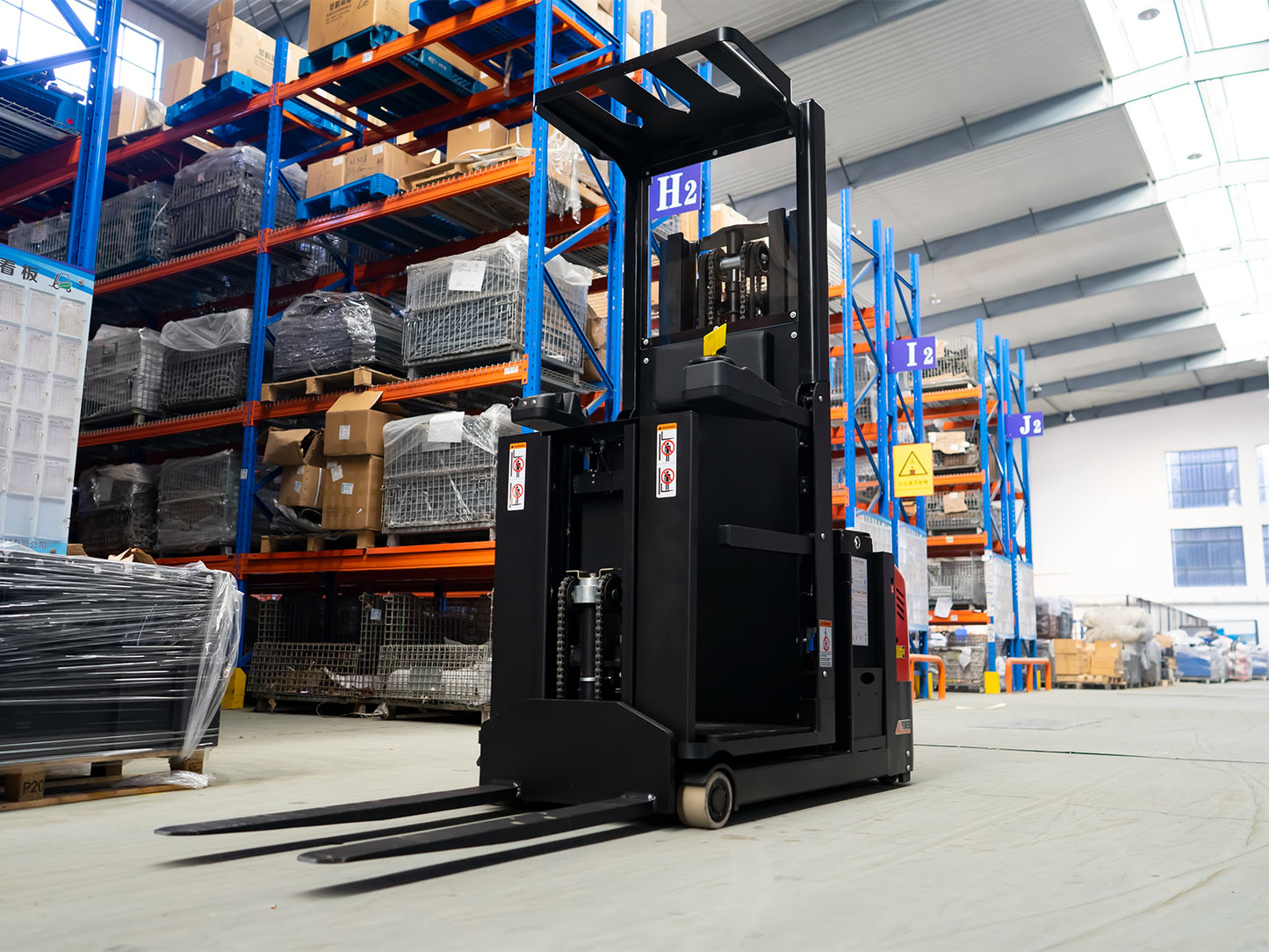

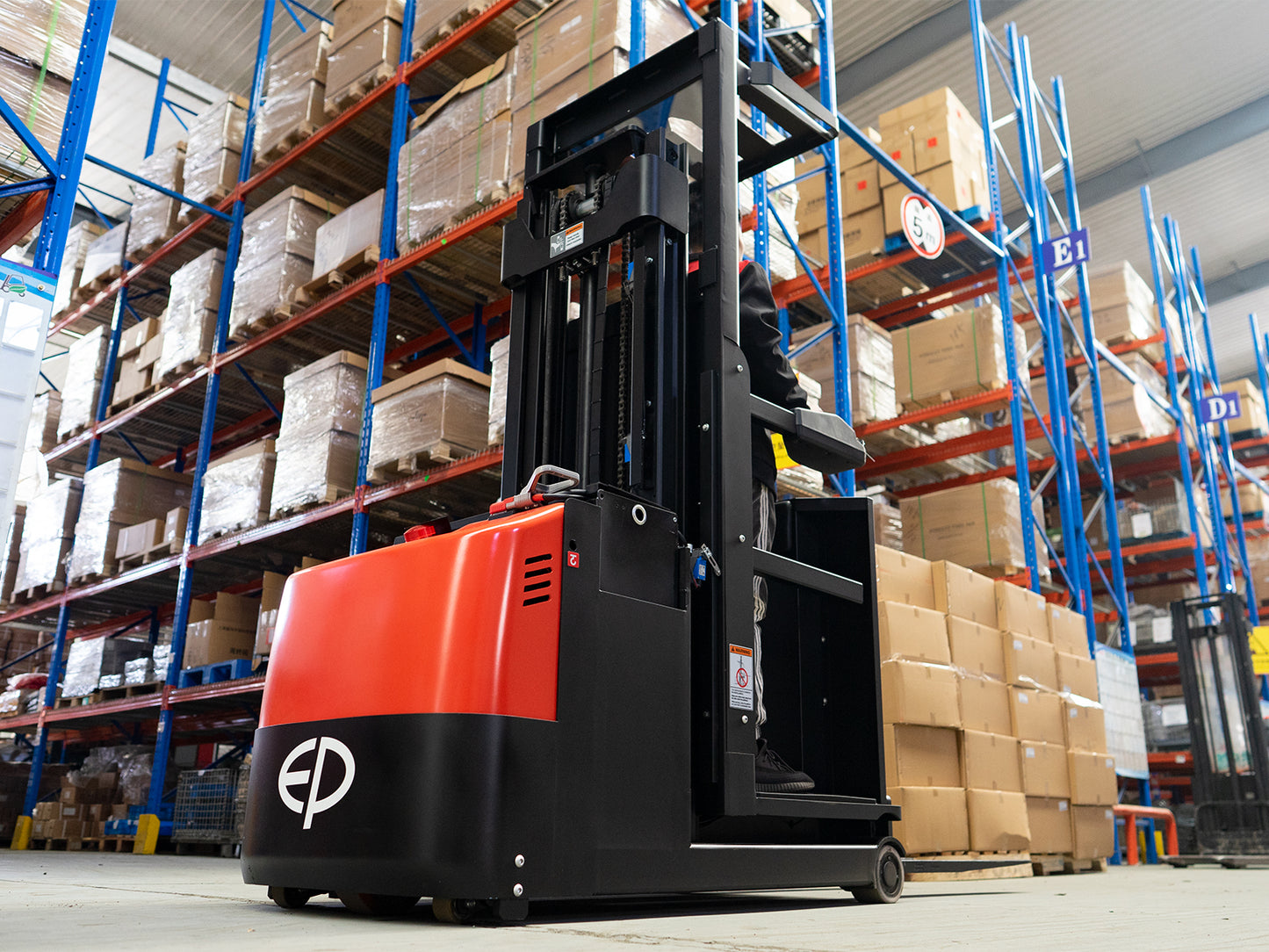

The JX2-3 is a versatile man-up order picker from EP, with 700kg auxiliary-lift forks to allow picking pallets at up to 3.6 metres, and a standing operator platform for picking boxes at up to 4.6 metres. Using the 800mm of auxiliary fork travel, operators can easily stack multiple orders while the go - making the JX2-3 an excellent multi-purpose warehouse vehicle.

With a smooth AC drive system, proportional controls and electronic power steering, the JX2-3 is easy to drive and control. Power is provided by a 24V/360Ah lead-acid battery, mounted on a lateral roller bed for rapid battery exchange if required. The robust triplex mast provides a high level of stability, giving operators the confidence they need to work efficiently, while the standing platform features a padded floor, backrest, and overhead guard with harness points for additional safety and comfort.

Versatile, reliable and affordable, the JX2-3 is a perfect fit for e-commerce warehouses and medium to high-level distribution centres. It is backed by a two year EP warranty.

DOWNLOAD THE DATA SHEET HERE

Designed to lift the operator up to higher racks safely to select stock by hand.

- 3000mm platform height (4600mm picking height)
- 3600mm fork height including 800mm auxiliary lift
- 700kg fork capacity
- Dimensions 1655L x 800W x 2000H (to face of forks, mast lowered)
- Service weight 1850kg
- 24V/360Ah lead-acid battery with external charger
- Electromagnetic braking
- AC drive system
- Optional safety harness is available on Simpro partcode 0250040004
- 24-month EP factory warranty

Liftrucks New Zealands Warranty coverage on EP Products.

EP takes pride in manufacturing quality equipment. The company guarantees all products to be free of defects in materials and workmanship when equipment is properly operated and maintained during the warranty period.

WARRANTY COVERAGE

2 years or 2000hrs whichever comes first on all mechanical items

2 years or 2000hrs whichever comes first on all electrical items including
batteries (Hoppecke, GS, HAWER)

Please see full warranty details HERE
